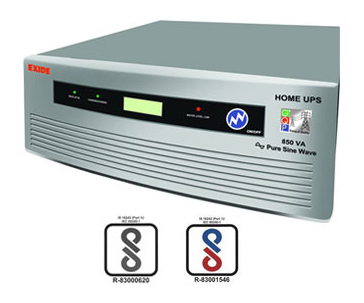

Exide Pure Sine Wave - GQP

Product Specification

Model Maximum Load Capacity in Watts
650 VA 450
850 VA 580
1450 VA (24V) 1000
1450 VA (12V) 1000


Exide Premium Home UPS System is a high-end DSP based Pure Sine Wave Home UPS with Grid Quality Power Output which guarantees 100 percent protection and long life of your electrical and electronic appliances.

Features of Exide Pure Sine Wave - GQP

- DSP (Digital Signal Processor) based Pure Sine Wave Home UPS and Grid Quality Power same as Mains
- ASIC (Automatic Sense Intelligent Control) Technology - Automatically senses battery condition and adjusts charging current accordingly and thus increases battery life and minimizes water topping.
- Programmed inbuilt Cooling Fan which operates automatically when needed - Electrolyte Level Sensor indicator - Indicating Battery Water Level Low (Optional)
- Mains bypass facility
- LCD Display for better user Interface and displaying the State of Battery Voltage, AC Mains Input Voltage, Actual Applied Load in %age, Overload Protection, Short Circuit Trip Protection, Battery Low Pre Alarm and Trip Protection, AC Mains Fuse Blown Indication as FUSE TRIP & UPS/Normal Mode Selection
- Protection - Inbuilt high-precision quality protection into Main PCB

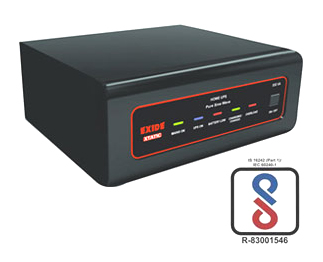

Exide XTATIC

Product Specification

Model Maximum Load Capacity in Watts
650 VA 450
850 VA 580
1450 VA 1000


Exide XTATIC Home UPS System is a high-end DSP based Pure Sine Wave Home UPS that guarantees 100% protection and long life of your electrical and electronic appliances.

Features of Exide XTATIC
DSP (Digital Signal Processor) based Pure Sine Wave Home UPS and Grid Quality Power same as Mains
ASIC (Automatic Sense Intelligent Control) Technology - Automatically senses battery condition and adjusts charging current accordingly and thus increases battery life and minimizes water topping.
Programmed inbuilt cooling fan which operates automatically when needed
LED Display: Different Color LEDs for better user Interface
Protection: High quality protection built up in the PCB

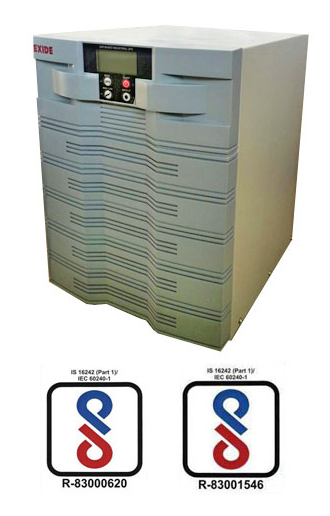

EXIDE HIGH KVA UPS RANGE

Product Specification

Description: 2KVA 24V to 10KVA

Applications:

- Primary Power Back up source for Industries, Corporate Offices and BPOs
- Provides reliable back-up for Office Equipment such as Computers, Projectors, Printers, Scanners and Fax Machines etc.
- Widely used in banks, multiplexes and shopping malls
- All Motor based applications such as AC, Fire Pumps, Water Pumps, Compressors and other 3 Phase critical motorized equipment Water Coolers and Deep Refrigerators
- Petrol Pumps, Fuel Dispensing Machines
- Emergency and Transportable Power Systems
- Gym /Health Equipment

Features of Exide High KVA UPS Range

- DSP (Digital Signal Processor) based Pure Sine Wave Industrial UPS and Grid Quality Power same as Mains
- ASIC (Automatic Sense Intelligent Control) Technology - Automatically senses battery condition and adjusts Charging Current accordingly and thus increases battery life and minimizes water topping.
- Smooth operations of AC motors and other loads unlike the irritating noise that comes from Modified Sine Wave Systems
- Extremely low Total Harmonic Distortion (<3%)
- Electronic Changeover ensuring compatibility with Computers
- Special TDR (Time Delay Relay) output option, for compressor based applications like AC a Short Circuit protection in Mains mode
- Capability of Surge Load up to 300%
- Very less operating cost in comparison with Online UPS and DG sets
- Equipped Bypass Switch to avoid the problems during system failure in higher ratings
- Suitable with DG sets
- Programmed inbuilt Cooling Fan which operates automatically when needed
- Multi Color LCD Display

EXIDE LOWER KVA UPS RANGE

Exide offers high-end DSP based Pure Sine Wave Home UPS with Grid Quality Power Output which guarantees 100% protection and long life for your electrical and electronic appliances. Exide's ASIC technology driven Home UPS ensures right battery charging for longer life and less topping up.

Exide Industries has now set up its Home UPS system manufacturing facility at Roorkee and all our Home UPS systems are manufactured at this state-of-the-art unit.


LKVA HOME UPS SIZING


Exide LKVA Home UPS can be customized to suit your need and budget. Key in the specifics and pick the right Home UPS.

Click Here

EXIDE INVERTERZ MAGIC

FEATURES OF EXIDE INVERTERZ MAGIC
•  Wide Mains Input Voltage Range 100V - 290V.
•  Controlled Output Voltage.
•  Suitable for Mains Low Voltage Operation, 8 - 10 AMP Charging at 120V Mains Input.
•  ASIC (Auto Sense Intelligent Control) technology for battery charging which automatically sense battery condition & adjust the charging current accordingly.
•  Soft Touch ON/OFF, Mode Selection & Charging Selection Switch.
•  Smart In-built Protections - Overload, Short Circuit, AC Back Feed, Battery Low, Battery over Charge, Mains Overload through Resettable Switch, Over Temperature etc.

TECHNICAL SPECIFICATIONS OF EXIDE INVERTERZ MAGIC

Description
MAGIC 12V 625VA
MAGIC12V 825VA
MAGIC 24V 1500VA
Output Voltage at No Load
235V ± 15V AC
Output Frequency
50Hz ± 1Hz
Output Wave Form
Square Wave
Nominal Battery Voltage
12V DC
24V DC
Battery Low Cut Off
10.5V ± 0.2V DC
21.0V ± 0.4V DC


CHARGING MODE

Model
MAGIC 12V 625VA
MAGIC12V 825VA
MAGIC 24V 1500VA
Maximum Charging Current (NC)
09.5Amp ± 1.5Amp
10Amp ± 1.5Amp
17Amp ± 1.5Amp
Maximum Charging Current (HC)
13Amp ± 1.5Amp
14Amp ± 1.5Amp
12.5Amp ± 1.5Amp
Boost Charging Voltage
14.4V ± 0.2V DC
28.8V ± 0.4V DC
Trickle Charging Voltage
13.7V ± 0.2V DC
27.4V ± 0.4V DC
Charging Current at 120V Mains Input
8-10Amp Charging*
Changeover Time Mains to Back-up (@ UPS Mode)
≤ 10msec
Changeover Time Back-up to Mains (@ UPS Mode)
≤ 10msec
Changeover Time Mains to Back-up (@ Normal Mode)
≤ 40msec
Changeover Time Back-up to Mains (@ Normal Mode)
≤ 10msec
Input Voltage Range (@ Normal Mode)
100V - 290V AC

*Depend upon Battery Voltage

EXIDE INVERTERZ STAR

FEATURES OF EXIDE INVERTERZ STAR
•  Advance Microcontroller Based Pure sine Wave Output Wave Shape Suitable for Mains Low Voltage Operation.
•  Wide Range of Mains Input Voltage for Battery Charging i.e. 90V - 300V AC.
•  LED Display for User Interface.
•  Dual Stage of Charging.
•  Auto Smart Protections.

TECHNICAL SPECIFICATIONS OF EXIDE INVERTERZ STAR

Description
STAR 12V 650VA
STAR 12V 850VA
STAR 12V 1050VA
STAR 24V 1450VA
Output Voltage at No Load
220V ± 7V AC
Output Frequency
50Hz ± 1Hz
Output Wave Form
Pure Sine Wave
Nominal Battery Voltage
12V DC
24V DC
Battery Low Cut Off
10.5V ± 0.2V DC
21.0V ± 0.4V DC


CHARGING MODE

Model
STAR 12V 650VA
STAR 12V 850VA
STAR 12V 1050VA
STAR 24V 1450VA
Maximum Charging Current (NC)
11Amps ± 1Amp
12Amp ± 1Amp
13Amp ± 1Amp
12Amp ± 1Amp
Maximum Charging Current (HC)
15Amps ± 1Amp
17Amp ± 1Amp
18Amp ± 1Amp
17Amp ± 1Amp
Boost Charging Voltage
14.4V ± 0.2V DC
28.8V ± 0.4V DC
Trickle Charging Voltage
13.7V ± 0.2V DC
27.4V ± 0.4V DC
Charging Current at 120V Mains Input
8-10Amp Charging Current*
Charging Over Time Mains to Back-up (@ UPS Mode)
≤ 10msec
Charging Over Time Back-up to Mains (@ UPS Mode)
≤ 10msec
Input Voltage Range (@ UPS Mode)
180V - 270V ± 10V AC
Change Over Time Mains to Back-up (@ Normal Mode)
≤ 40msec
Change Over Time Back-up to Mains (@ Normal Mode)
≤ 10msec
Input Voltage Range (@ Normal Mode)
90V - 300V ± 10V AC

*Depend upon Battery Voltage

EXIDE INVERTERZ GQP

FEATURES OF EXIDE INVERTERZ GQP
•  High Quality Pure Sine Wave.
•  Copper Transformer*.
•  3 Stage Intelligent ASIC Charging*.
•  LCD & LED - Dual Display.
•  Great Power Saving.
•  Manual Mains Bypass Facility
•  Dual Output Sockets*
•  Auto Smart Protections
•  Mains Overload Through Resettable Switch*

TECHNICAL SPECIFICATIONS OF EXIDE INVERTERZ GQP

Description
GQP 12V 650VA
GQP 12V 850VA
GQP 12V 1050VA
GQP 24V 1450VA
GQP 12V 1450VA
Output Voltage at No Load
220V ± 7V AC
Output Frequency
50Hz ± 1Hz
Output Wave Form
Pure Sine Wave
Nominal Battery Voltage
12V DC
24V DC
12V DC
Battery Low Cut Off
10.5V ± 0.2V DC
21.0V ± 0.4V DC
10.5V ± 0.2V DC


CHARGING MODE

Model
GQP 12V 650VA
GQP 12V 850VA
GQP 12V 1050VA
GQP 24V 1450VA
GQP 12V 1450VA
Maximum Charging Current (NC)
09Amp ± 1Amp
09Amp ± 1Amp
09Amp ± 1Amp
09Amp ± 1Amp
22Amp ± 10%
Maximum Charging Current (EC)
11Amp ± 1Amp
11Amp ± 1Amp
11Amp ± 1Amp
11Amp ± 1Amp
NA
Maximum Charging Current (HC)
13Amp ± 1Amp
13Amp ± 1Amp
13Amp ± 1Amp
13Amp ± 1Amp
30Amp ± 10%
Boost Charging Voltage
14.4V ± 0.2V DC
28.8V ± 0.4V DC
14.4V ± 0.2V DC
Trickle Charging Voltage
13.7V ± 0.2V DC
27.4V ± 0.4V DC
13.7V ± 0.2V DC
Change Over Time Mains to Back-up (@ UPS Mode)
≤ 10msec
Change Over Time Back-up to Mains (@ UPS Mode)
≤ 10msec
Input Voltage Range (@ UPS Mode)
180V - 260V ± 10V AC
Change Over Time Mains to Back-up (@ Normal Mode)
≤ 40msec
Change Over Time Back-up to Mains (@ Normal Mode)
≤ 10msec
Input Voltage Range (@ Normal Mode)
100V - 280V ± 10V AC

*Not Applicable for GQP 12V 1450VA
